QUIET THE CHATTER
A bigger bore means a smoother, more controlled ride in any terrain while a hydraulic end zone top out soaks up all the bumps along the way.
-
TRAIL-TESTED DURABILITY
Built with aerospace-grade aluminum, MT64 was specifically designed to accommodate heavier rigs over rough terrain.
-
SET IT & FORGET IT
Less time messing with settings and more time making memories. Dial it in for your ride style once and get lasting performance.
MORE CAPABILITY, MORE ADVENTURES.

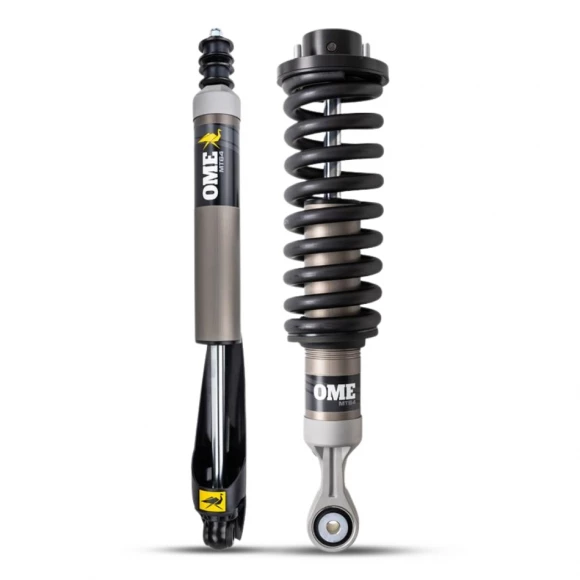

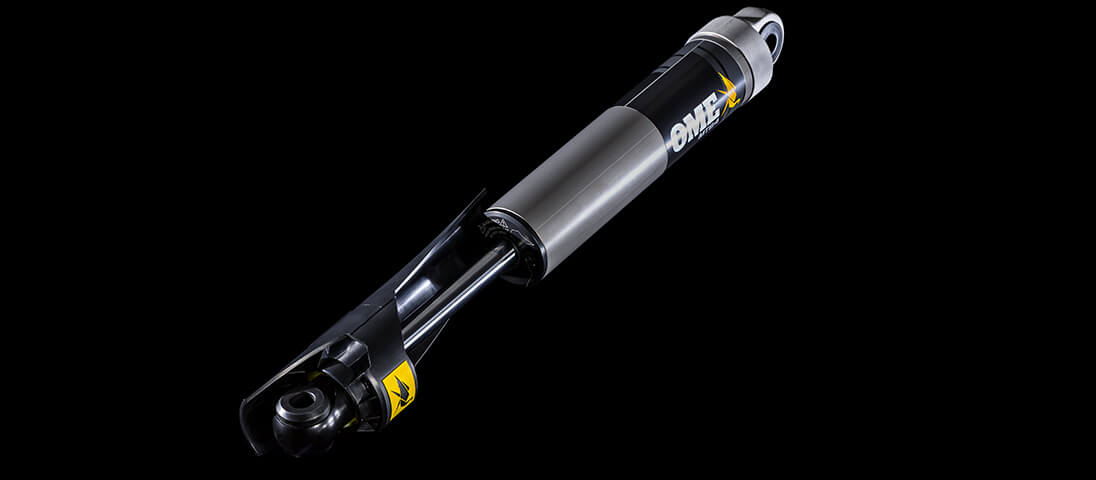

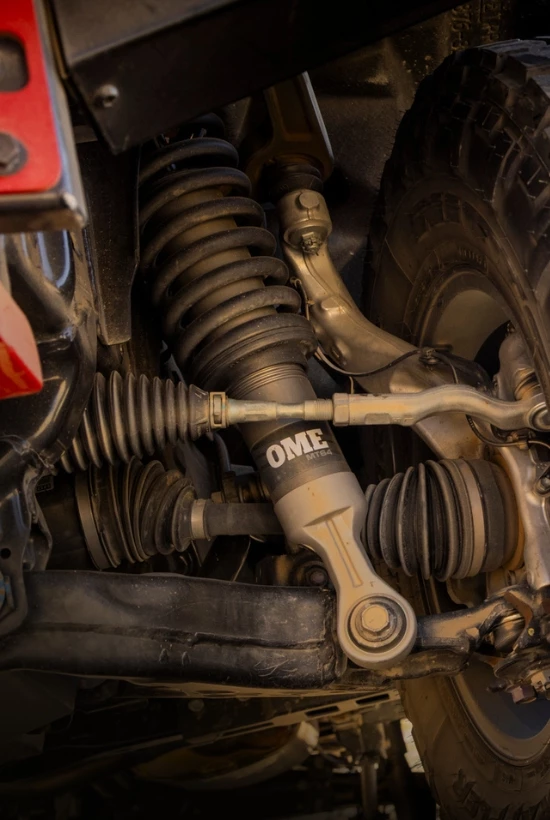

OME MT64 shocks deliver the control and confidence of a 2.8-inch shock without the added complexity.
- No remote reservoirs
- No adjusters to fuss with
- 6-Position ride height adjustment via circlip
- Maintenance free design
- Bolt-on solution
- Smooth and controlled for all-day comfort
SHOP KITS FOR NEW VEHICLES
SPECIFICATIONS

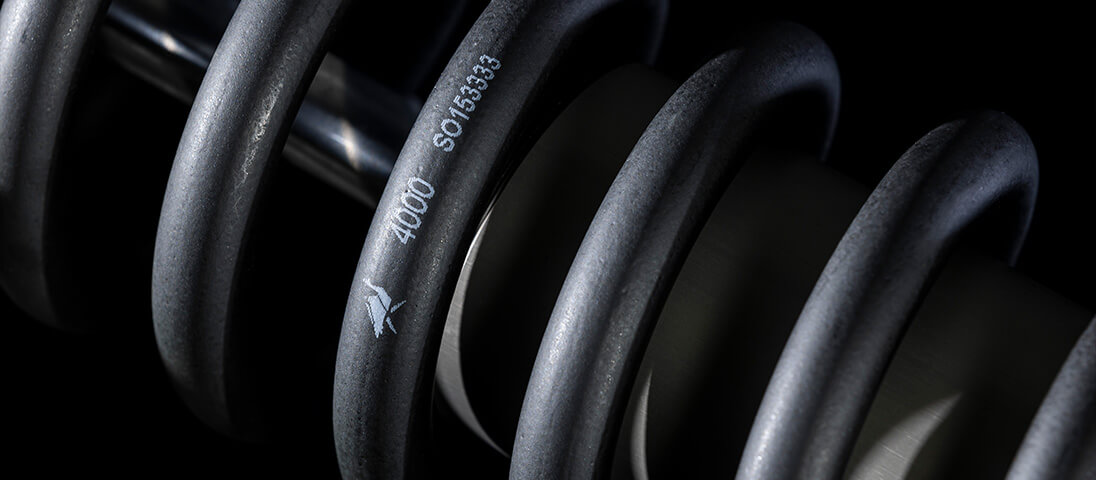

ADJUSTABLE SPRING SEAT FOR DIFFERENT LOADS
Adjustable spring seat with 6 positions in 5mm increments, allows for one coil spring to cater for different weight variations
REFINEMENT IN RIDE

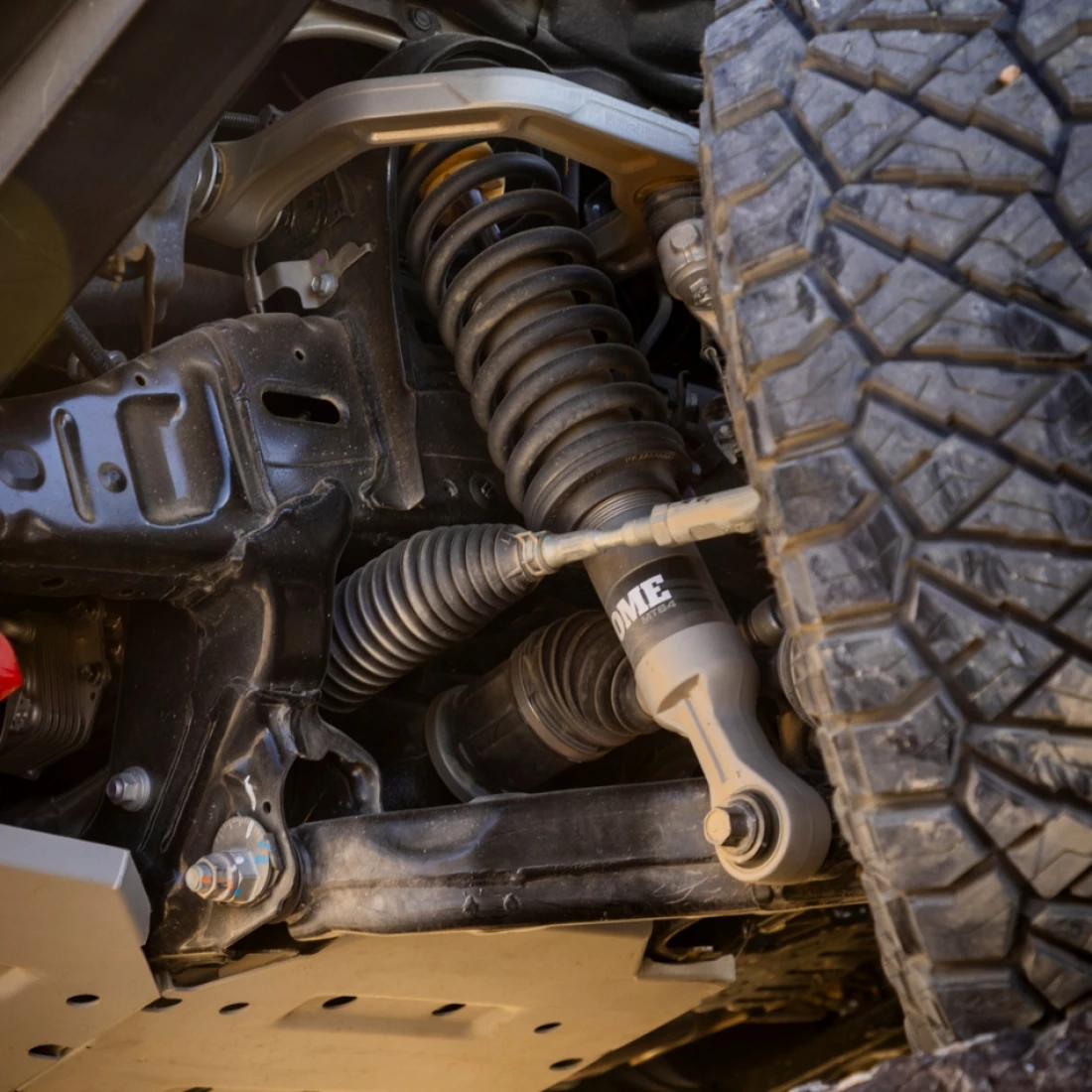

The huge 64mm (2.5in) internal bore allows for more oil and bigger piston and shim stacks, to reduce heat providing more control through the stroke giving a more refined ride
DURABLE CONSTRUCTION
Utilizing the same aerospace grade aluminum as our high-performance BP-51 to dissipate heat effectively
QUALITY FINISH

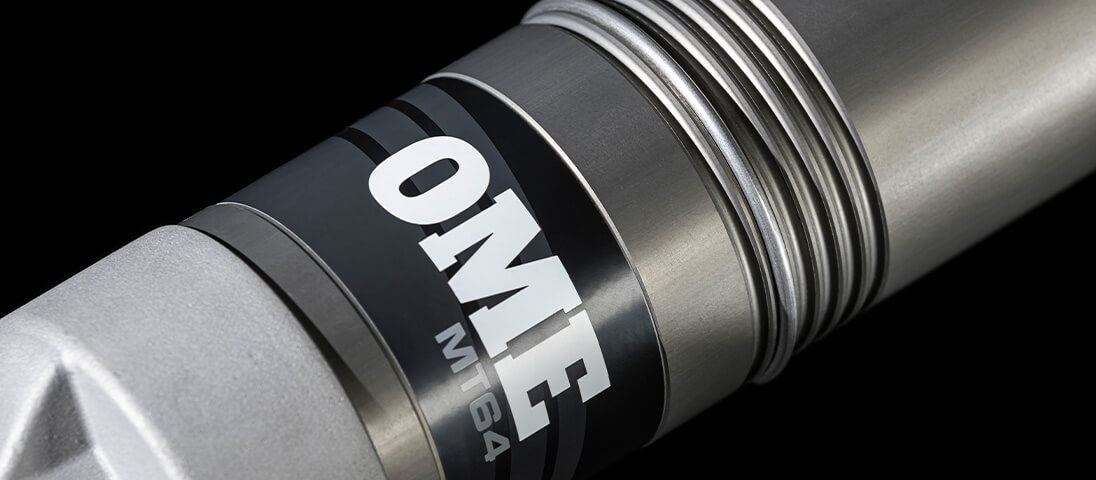

Covered with military spec hard anodized finish, the MT64 has superior corrosion resistance and can handle extreme temperatures.
COMPREHENSIVE COMFORT
In addition to plush everyday comfort, MT64 is also designed with a hydraulic end zone top out, which provides added padding at the shock’s full extension, to compensate for any unexpected bumps
PRODUCED BY ARB
ARB's uncompromising Old Man Emu suspension team has designed, engineered and manufactured the MT64, giving you confidence in the quality
EVERYDAY IMPROVEMENT
Smooth, controlled ride for everyday and long-distance driving to reduce fatigue and general wear and tear on your vehicle’s components
INCREASED SIZE
MT64’s sizable shape makes it one of the biggest monotubes on the market, providing users with more of every aspect of the shock
DOUBLE BONDED RUBBER BUSHES
Providing unrivaled Noise, Vibration, Harshness (NVH) compliance, the bushes limit feedback to the driver through the suspension components. The natural rubber bushes provide a noise-free cushioned ride due to the softer finish and its ability to absorb bumps on the road
PISTON ROD
Equipped with a larger 22.5mm (7/8in) piston rod (shaft), the hard chrome finished rod provides improved strength and exceptional stability
WARRANTY
MT64 comes with the backing of ARB’s global support network, including a 3-year warranty which ensures you’ll go further for longer

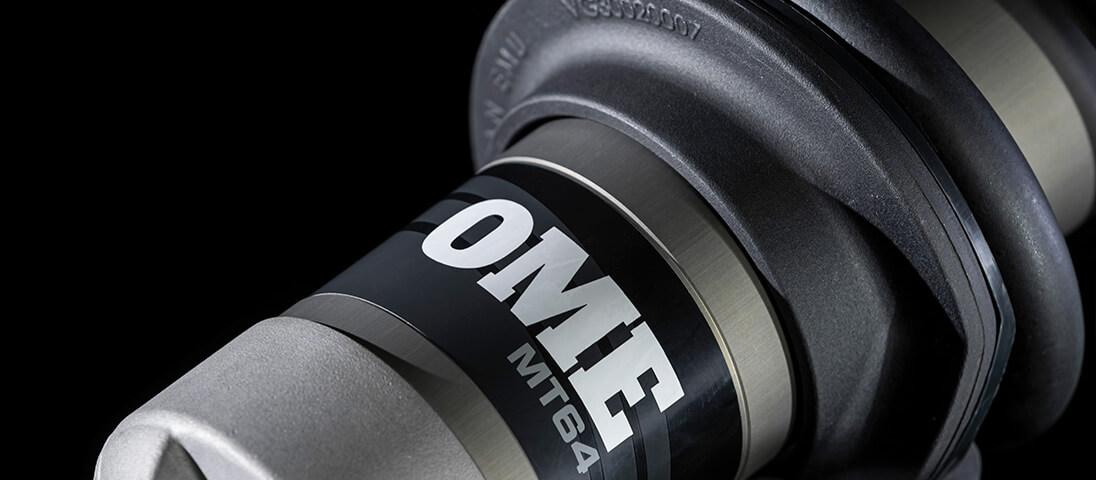

FORGED ENDCAP

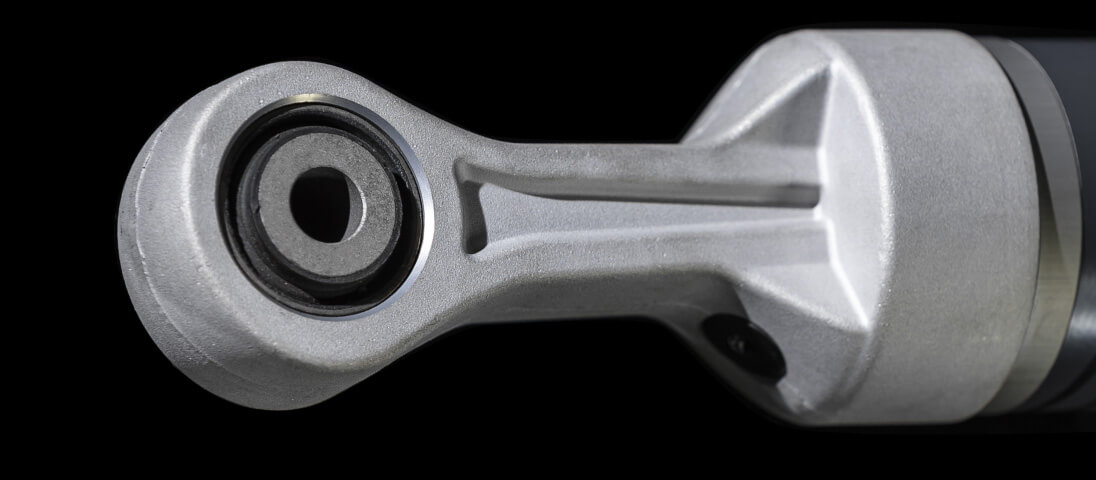

The expertly forged 6061 aluminium bodycaps provide increased strength to this solid shock, and also assist in dissipating heat to improve performance

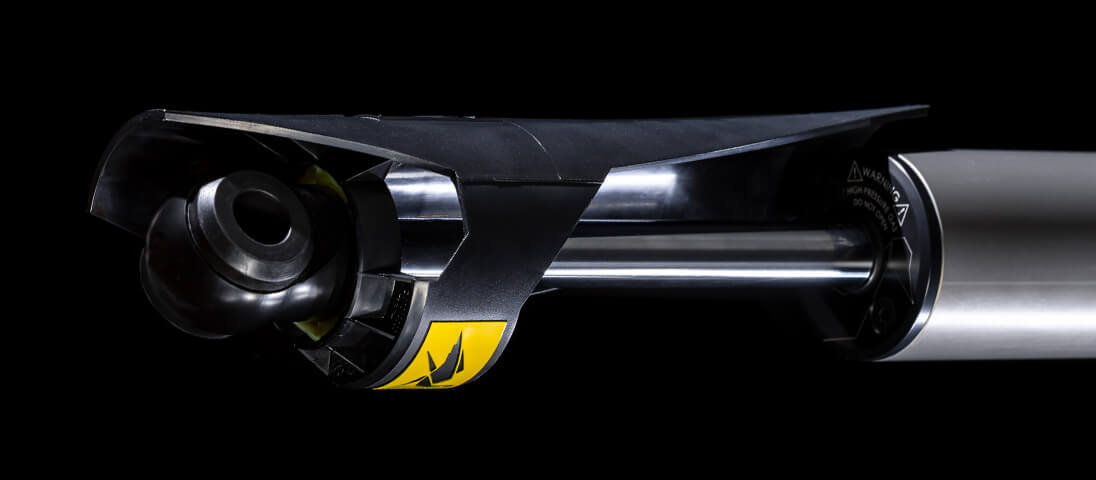

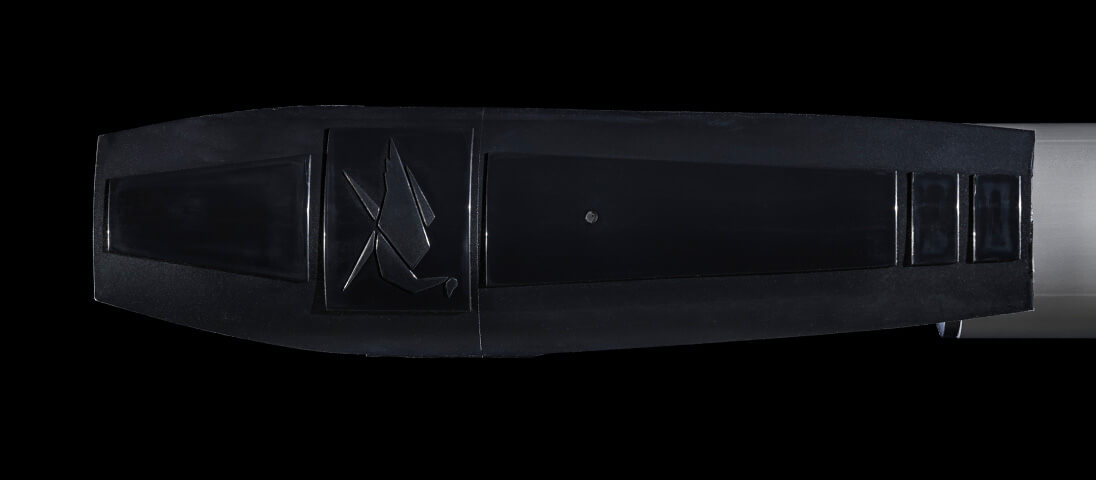

SHAFT GUARD
Made from high density polyethylene, the shaft guard is designed to protect the shaft from stones and other debris and is also replaceable
MULTI-LIP COMBO SEAL
Reinforced with a resilient multi-lip combo seal which is designed to handle high pressure and shaft speeds, whilst also being made from a material that will handle a high temperature range
PROTECTIVE BUMP CAP

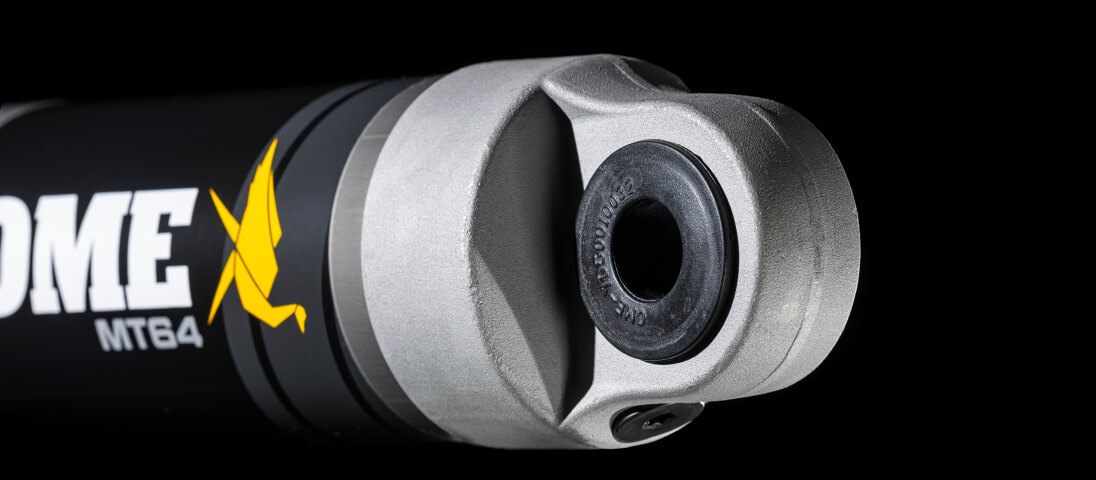

MT64 is sealed with a bump cap that utilises an integrated wiper seal, to guarantee the prevention of any dust, dirt and contaminant ingress
MT64 FAQs
-
The MT64’s name is derived from the construction of the shock absorber. The MT is the abbreviated version of the word monotube, relating to the shocks singular tube design. The 64 describes the measurement of the massive 64-millimetre (2.5-inch) internal bore.
-
As the name suggests, the twin tube has a second internal tube inside the shock to separate oil and nitrogen gas. This is a proven technology that works very well, but has its limitations around oil volume and tuning capability due to the piston and overall internal volume being smaller due to having to house a second tube. A monotube shock absorber is a single body design, which utilises a floating piston at the top of the shock body to separate the oil and nitrogen gas. This allows a much larger amount of oil to be inside the shock absorber, which not only limits the shock fade, but also increases the overall size of the piston. This increase gives our engineers a huge scope for tuning, allowing us to tune your vehicle perfectly.
-
The MT64 takes inspiration from our tried and proven Nitrocharger, combining with our in-house designed and manufactured world class BP-51 shock absorber, filling the gap between affordable reliability and ultimate race inspired performance. If you’re an avid camper and 4WDer, the MT64 is the perfect companion to get you there and back again with ultimate reliability, all while in complete comfort and control for hours on end.
-
Due to the increased oil volume and shim stack, the MT64 performs well with added weight. Our engineers have ensured the shock is the perfect companion for overlanding with your camper/van in tow, providing superior comfort and control even when fully loaded.
-
The MT64 range has been extensively tuned by the Old Man Emu team to suit each individual vehicle, and provide multiple shock options for your vehicle. The result is a damper range capable of multiple configurations of accessories and weight for the vehicle, ensuring that our OME engineers have done the work for you in terms of tuning. This is achieved with a configurable spring seat allowing your vehicle height to be adjusted as you add or remove accessories. For the driver who just wants reliability and all the hard work done, MT64 is for them and doesn’t require any fine tuning or adjustability.
-
Our well known Nitrocharger range is a twin tube design, compared to the MT64 which we have opted for a monotube design. The MT64 has a massive internal bore of 2.5-inch bore which gives our engineers a much larger scope for perfectly tuning the shock absorber for any vehicle platform. This results in a large increase in vehicle control and comfort. Due to the large internal oil volume, MT64 provides consistent damping performance over a wide temperature range and allows you to travel for as long as you need. The MT64 also feature an anodized aluminum body which dissipates heat up to 15x faster and is 1.3x lighter than steel, whilst also providing superior corrosion resistance.
